Shadow Boards

Download PDF Brochure

Our component shadow boards offer inherent quality control, visual management clues and help improve turn around times. Each board is specifically designed for a given assembly or process.

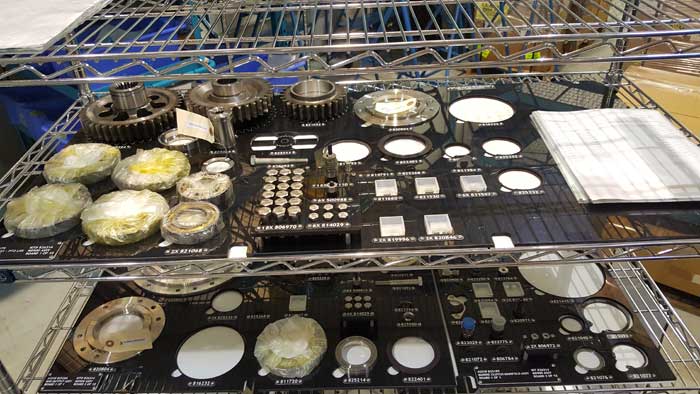

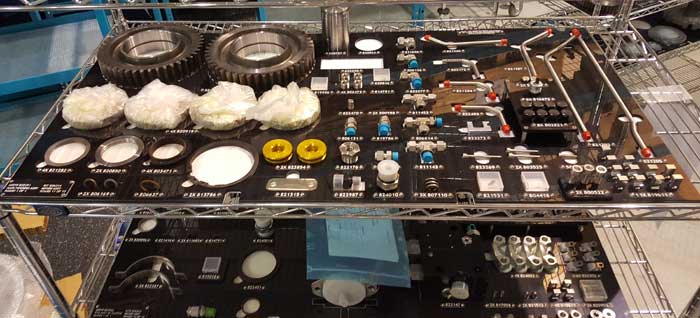

Each product is designed for a specific assembly or process. All the parts that are required to build that assembly are clearly laid out, thus eliminating both the need to search for parts and the guess work involved in having too many, or too few parts.

Disassembly or dirty shadow boards are composed of two layers of plastic that can be separated for ease of cleaning, eliminating contamination of clean parts returned to shadow boards.

The key benefits of our customizable shadow boards are:

  • Totally customizable for all the parts needed to build an assembly
  • Made out of chemical / oil resistant plastics
  • Contrasting colours quickly identify missing parts
  • Part numbers or part names can be engraved on the shadow boards for ease of identification

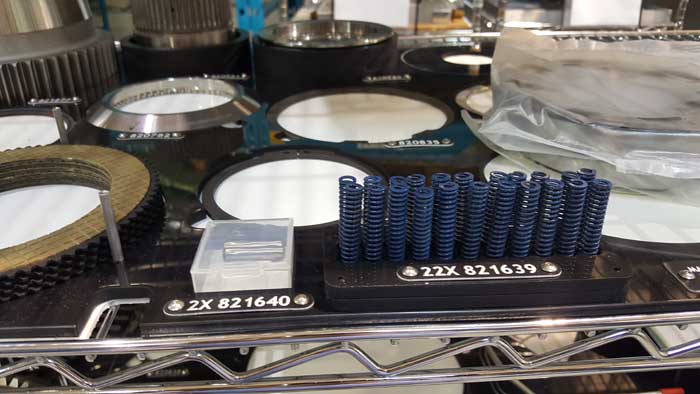

  • Optional raised layers for hardware retention

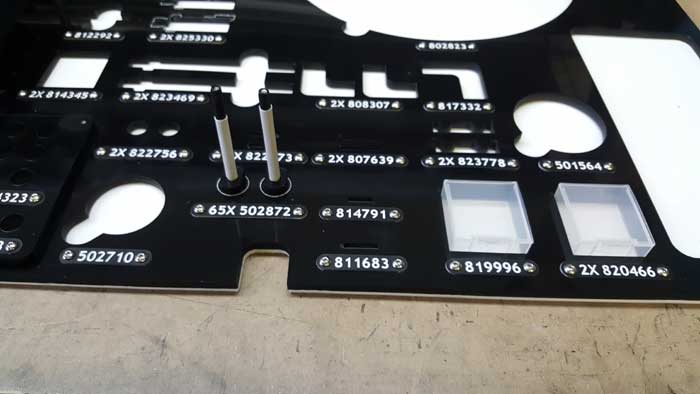

  • Optional post for washer stacking
  • Optional live hinge plastic boxes for small parts
  • Optional shaft cradles to prevent movement during transportation
  • Optional single or removable layer design for ease of cleaning
  • Supported Products S76 MGB, CT58 Engines.
  • If we are not currently supporting your product line, please contact us today! We are always looking to expand our portfolio and help our Clients boost their productivity.
